6KW DEYE INVERTER COMBO SOLUTION
  • 6KW DEYE INVERTER COMBO SOLUTION
  • 6KW DEYE INVERTER COMBO SOLUTION
  • 6KW DEYE INVERTER COMBO SOLUTION

6KW DEYE INVERTER COMBO SOLUTION

Product details

Description:

  • 48V Low Voltage Battery Supported
  • No. of MPP Trackers: 2
  • No. of Strings per MPP Tracker: 1+1
  • High Performance: Support a peak output of 2 times the rated power for up to 10 seconds
  • Outdoor-Ready: IP65-rated, built to withstand tough environment
  • Durable & Reliable: Independent cooling design reduces dust accumulation and extends lifespan
  • High Efficiency: 4ms UPS-level switching time
  • Smart MPPT Technology: 2 MPPTs, supports 1.6x PV oversizing (18A+18A), optimizing energy from panels at various angles
  • Long-Term Assurance
  • Parallel Scalability: Supports 16 pcs parallel (off-grid)
  • Generator Integration: Support storing energy from generator

This combo includes:

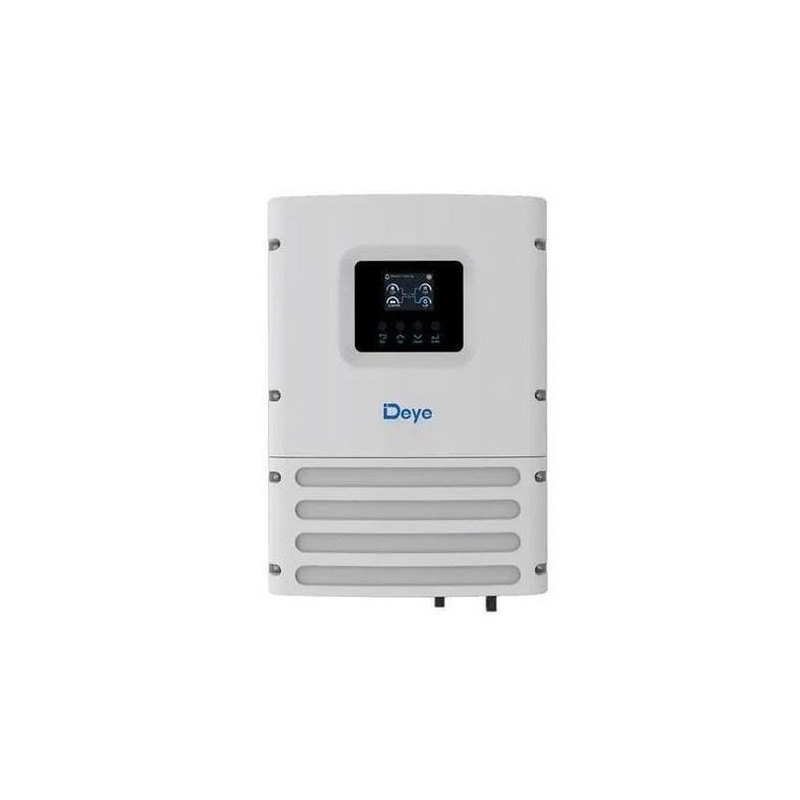

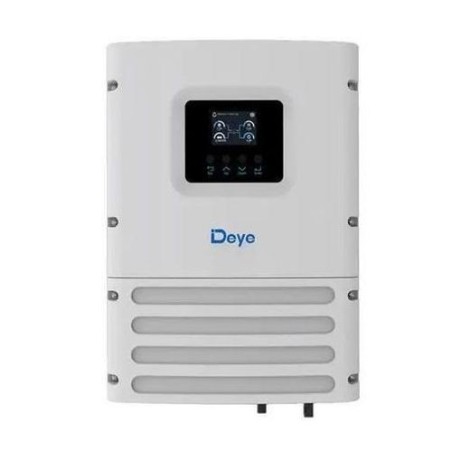

6kw Deye Inverter

10.2kwh Deye Battery

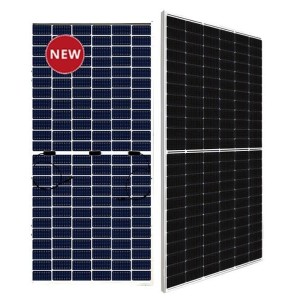

625W Panel      8pcs

Accessories

10mm Cables    20yrd

₦4,610,000.00
Tax excluded
Quantity

Ask about the product on WhatsApp
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Key Specifications

Model SUN-3K-OG02LP1
-24-EU-AM1		 SUN-3K-OG02LP1
-EU-AM1		 SUN-3.6K-OG02LP1-EU-AM1 SUN-5K-OG02LP1-EU-AM1 SUN-6K-OG02LP1-EU-AM1
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 20-30 40-60
Max. Charging Current (A） 130 70 90 120 135
Max. Discharging Current (A) 130 70 90 120 135
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Access Power (W) 6000 7200 10000 12000
Max. PV Input Power (W) 4800 5760 8000 9600
Max. PV Input Voltage (V） 450
Start-up Voltage (V) 125
MPPT Voltage Range(V） 150-425
Rated PV Input Voltage (V) 370
Max. Operating PV Input Current (A） 18 36
Max. Input Short-Circuit Current (A) 27 54
AC Output Data
Rated AC Output Power (VA/W) 3000 3600 5000 6000
Max. AC Output Power (VA/W) 3000 3600 5000 6000
Max. AC Output Current (A) 13.1 15.7 21.8 26.1
Peak Power (W） 2 times of rated power, 10s
Rated Output Voltage (V) 230
Output Type L+N+PE
Rated Output Frequency(Hz) 50 / 60
Output Voltage Waveform Pure Sine Wave
Total Current Harmonic Distortion THDi ＜3%
AC Input Date(Grid and Generator)
Max. Input Power to Battery (W) 3000 3600 5000 6000
Rated Input Voltage/Range (V） 230
Rated Input Frequency(Hz) 50 / 60
Gird Input Current (A) 35
Generator Input Current (A) 35
Efficiency
Max. Efficiency 97.6%
Euro Efficiency 96.5%
MPPT Efficiency >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection,
DC Component Monitoring, Insulation Impedance Detection
Surge Protection Level TYPE II(DC), TYPE II(AC)
Interface
LCD/LED Display LCD
Communication Interface WIFI,RS485,CAN
General Data
Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0-100%
Permissible Altitude 3000m
Noise (dB) <46
Ingress Protection(IP) Rating IP 65
Inverter Topology Non-Isolated(solar), Isolated (battery)
Over Voltage Category OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm) 306×427.5×175.8 (Excluding Connectors and Brackets)
Weight (kg） 9.3
Type of Cooling Intelligent Air Cooling
Warranty Standard 5 years, extended warranty
Safety / EMC Standard

IEC62109-1/-2, EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4
