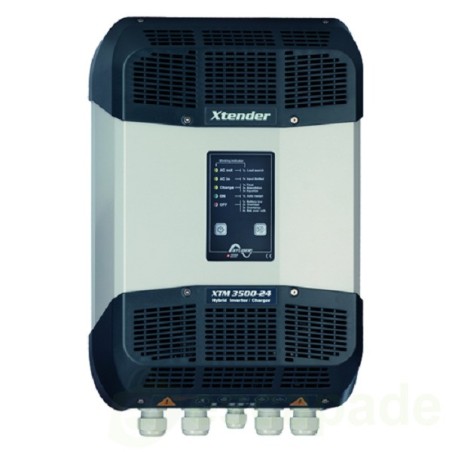

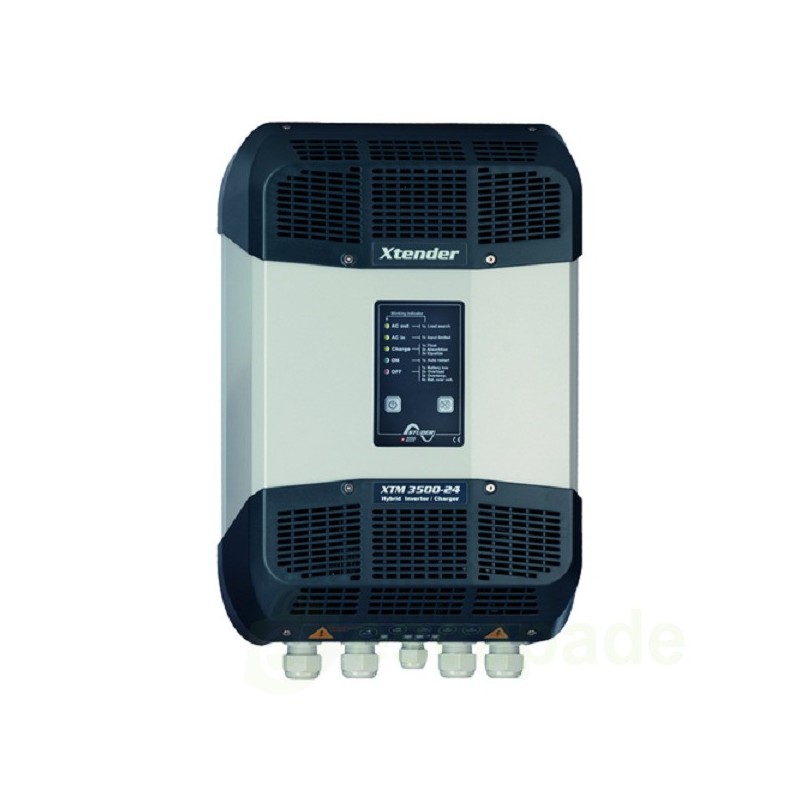

PRAG offers you Studer Xtender XTM 3500 with its seemingly limitless programmable functions, the XTM offers unequaled flexibility compared to other products on the market.
This Studer Xtender XTM 3500 – 3.5KVA – 24V – inverter/charger has a continuous power rating of 3kVA up to an ambient temperature. In addition to this, it has a 30 minute power rating of 3.5kVA, and can deliver 9kVA for up to 5 seconds! Thanks to this very high surge power capacity, it can supply without worries loads with a high start-up current.
The battery charging current can be adjusted between 0 and 90Adc. The factory default settings include a battery charging curve best suited for lead acid batteries with gelled electrolyte (GEL). This battery charging curve can be easily adapted to other types of batteries including OPzS, NiFe, Lithium and Redox Flow, to name but a few.
The transfer system is active when an AC power source (generator, public grid, shore power…) is available at the AC input of the Xtender. The transition between inverter and transfer mode is achieved without any power cut and allows up to 50Aac of current to pass through to the loads. Similarly, the transition between transfer and inverter mode is extremely fast (max 15ms), which makes the Xtender suitable for many UPS (uninterruptable power supply) applications.
The Smart-Boost function allows the Xtender to assist the AC source via the inverter function. This way, the currents from both sources (AC-in and inverter) are combined to deliver the energy required by big loads if the loads are more than the AC source can supply.
The injection function allows the Xtender to send energy to the grid. This function is especially useful in energy storage systems where either the excess energy is injected to the grid, or a specific current is injected at a specific time of the day.
The Xtender has two auxiliary contacts, configured by default for the automatic start of a generator and the alarm function.
