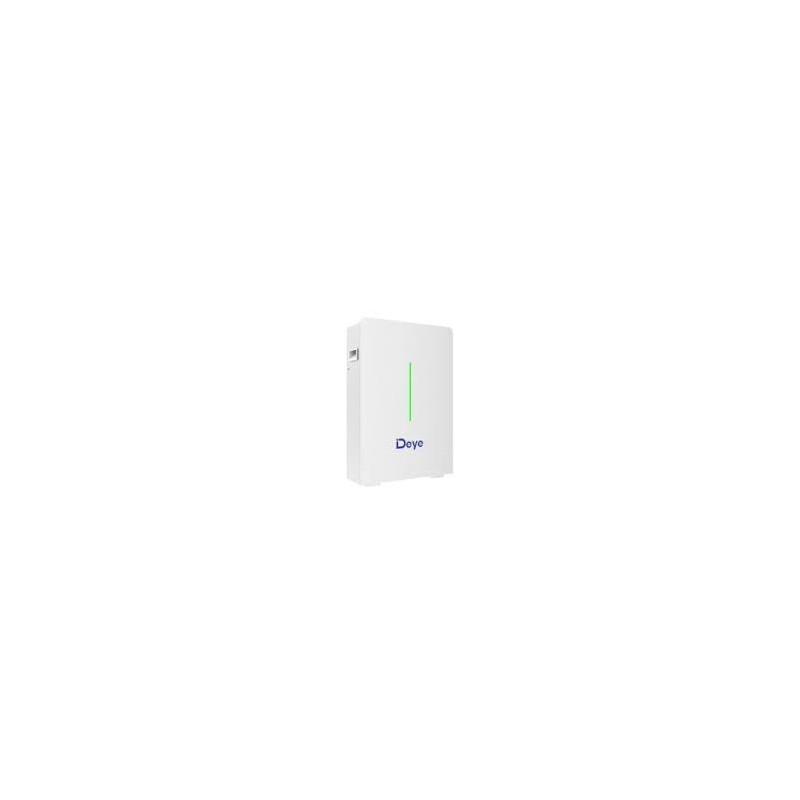

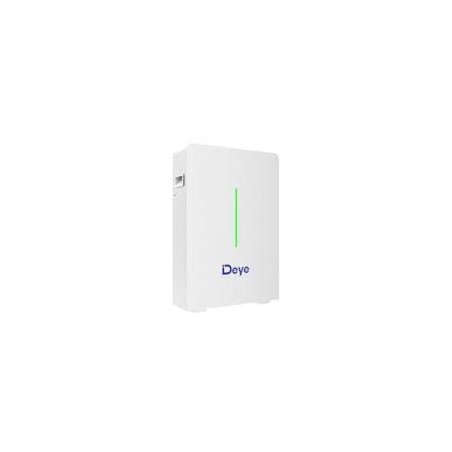

16KWH 51.2V DEYE LITHIUM BATTERY

"High Energy Capacity: 16 kWh of power with a 314 Ah nominal capacity

Superior Durability: Over 6000 charge cycles for a long operational life

Powerful Performance: Delivers a high continuous discharge current of 230 A

Advanced Safety: Integrated Battery Management System (BMS) with an active fuse

Massive Scalability: Connect up to 32 units in parallel for large-scale energy needs

Flexible Monitoring: Easily monitor status via Bluetooth app, CAN2.0, and RS485

Versatile Installation: Options for wall, floor, or stack mounting to fit any space

"The SE – F16 is a standout energy storage solution ideal for both residential and commercial use.

Parameter Value

Model SE-F16

Battery Chemistry LiFePO₄

Nominal Capacity 314 Ah

Nominal Energy 16 kWh

Nominal Voltage 51.2 V

Operating Voltage 44.8 V – 57.6 V

Max. Cont. Charge Current 160 A

Max. Cont. Discharge Current 230 A

Peak Discharge Current 280 A (10 sec)

Dimensions (W×H×D) 400 × 708 × 233 mm (Without hanging board)

Weight Approximate 109 kg

Recommended DoD 90%

Cycle Life >6000 cycles (25°C±2°C, 70%EOL)

IP Rating IP21

Operating Temperature Charge: 0~55°C / Discharge: -20°C~55°C

Communication CAN2.0, RS485, Bluetooth+APP

Scalability Max. 32 units in parallel

1. Comprehensive Protection: Equipped with an advanced Battery Management System (BMS) featuring an active fuse, it ensures safe and stable operation, safeguarding your energy storage investment.
2. Superior Performance: Supports up to 1C charge and 1.2C discharge, enhancing energy utilization efficiency. Incorporating GaN MOSFETs, it achieves a 50% reduction in energy loss and boasts excellent high – temperature resistance, performing reliably even in tough conditions.
3. Optimized Energy Density: The integrated PACK design cuts down line loss significantly, boosting energy density and allowing for more energy storage in a compact space.

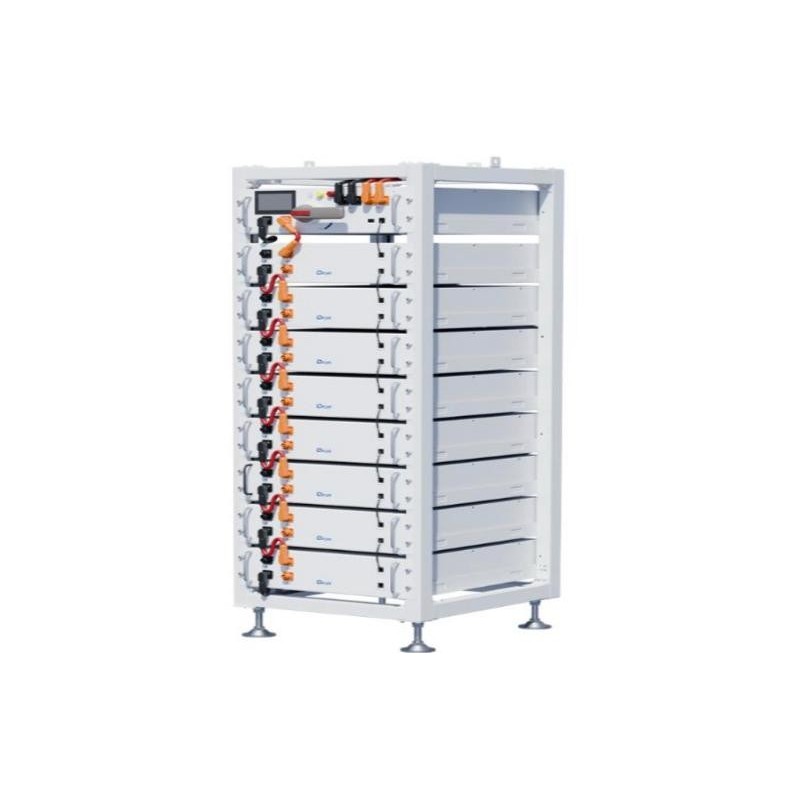

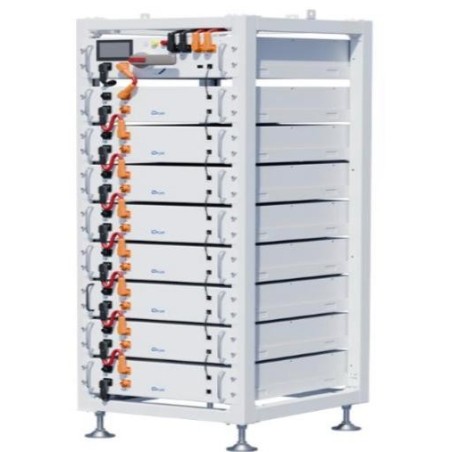

4. Flexible Expansion: You can parallel up to 32 units, easily meeting growing energy storage needs as your requirements change.
5. Easy Maintenance: Offers auto – networking and dual monitoring modes—local monitoring for the battery and remote monitoring for the entire ESS, making management and upkeep a breeze.
6. Reliable Durability: Operates flawlessly in temperatures ranging from – 20°C to 55°C with natural cooling, ensuring year – round dependability without the need for complex cooling systems.
