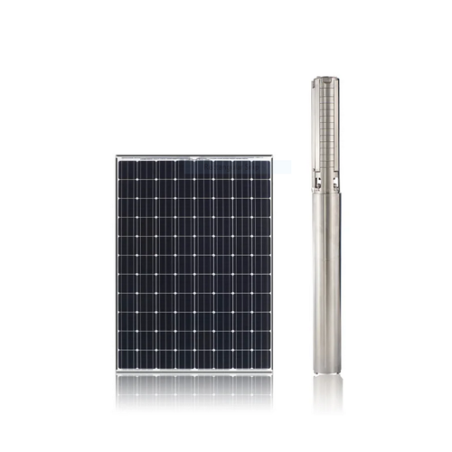

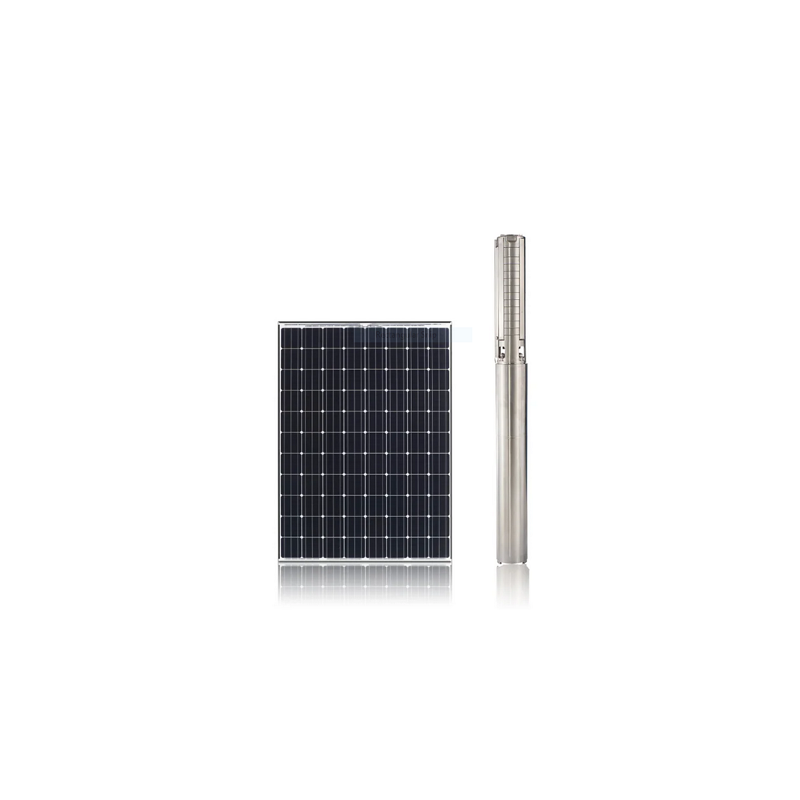

Integrity Solar Pump – 1 HP | 63 m Total Head
Achieve dependable, grid‑free water delivery with the Integrity 1‑horsepower Solar Pump, purpose‑built to lift water up to 63 metres while running directly from photovoltaic panels. Perfect for boreholes, overhead storage tanks, livestock supply, and small‑scale irrigation.
High‑Head Capability
Multistage stainless‑steel submersible design pushes water 63 m (≈206 ft)—ideal for 150‑ to 200‑ft wells or elevated rooftop tanks.
Solar‑Direct, Inverter‑Free
Connect straight to your PV array and skip the AC inverter for lower cost, simpler wiring, and higher overall efficiency.
Integrated MPPT Controller
• Continuously tracks sunlight for maximum flow from dawn to dusk
• Soft‑start to protect pump and panels
• Built‑in safeguards: dry‑run, reverse polarity, over‑/under‑voltage, over‑temperature.
Robust 1 HP Brushless DC Motor
Oil‑free, whisper‑quiet, IP68 sealed, and rated for 20 000 h before service.
Flexible PV Input (36 – 110 V DC)
Works with 4–6 common 250–400 W panels (1 – 1.8 kW total). Scale the array to match your climate and daily water demand.
Zero Fuel, Zero Bills
After installation, the sun does the pumping—no diesel, no grid tariffs, no maintenance headaches.
Parameter | Value |
---|---|
Motor Power | 1 HP / 0.75 kW |
Max Head | 63 m |
Typical Flow* | 2.5–3.0 m³ h⁻¹ at low head (<15 m) |
Voltage Range | 36 – 110 V DC |
Recommended PV | 1 000 – 1 800 W (4–6 × 250–400 W panels) |
Pump Type | 12‑stage centrifugal, SS‑304 casing & impellers |
Outlet Size | 1¼″ BSP male |
Controller | Built‑in MPPT, IP65 enclosure |
Protections | Dry‑run, reverse polarity, surge, overload, over‑temp |
Cable Length | 2 m factory‑fitted (extendable) |
*Actual flow varies with head, solar irradiance, and array size.
Deep Borehole Supply: Lift groundwater into elevated reservoirs for household or community use.
Livestock & Poultry Farms: Automatic trough filling far from mains electricity.
Smallholder Irrigation: Drip or sprinkler systems up to 2 acres, powered solely by the sun.
Remote Villages & Clinics: Reliable, clean water without diesel generators or unstable grids.
