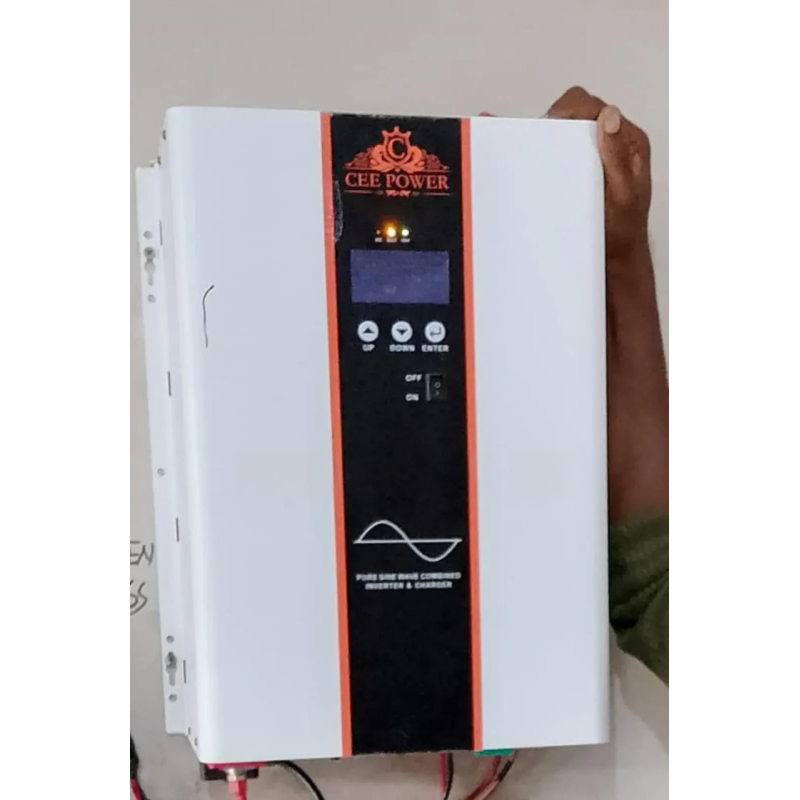

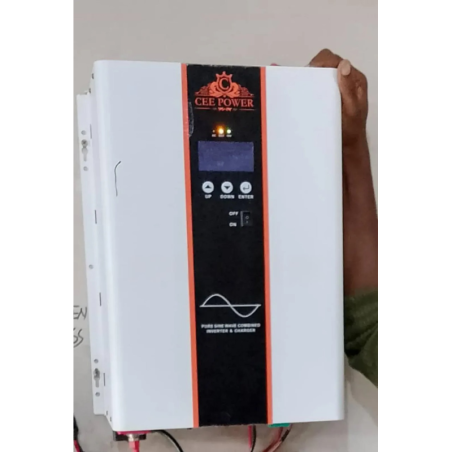

30kva 192v Cee Power Inverter
  • 30kva 192v Cee Power Inverter

30kva 192v Cee Power Inverter

₦1,920,000.00
Tax excluded
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

30kVA 192V Cee Power Inverter is a high-capacity hybrid inverter built for heavy-duty power applications such as large homes, estates, office buildings, farms, industrial machines, and mini-factories. The use of a 192V battery bank allows it to efficiently handle large loads with reduced current flow.


⚙️ Key Specifications

Feature Details
Power Rating 30kVA ≈ 24,000W usable (assuming PF = 0.8)
Battery Voltage 192V DC
Inverter Type Hybrid (Solar + Battery + Grid)
Waveform Output Pure Sine Wave
Brand Cee Power
Recommended Use Large facilities, offices, farms, schools, estates, industrial sites

🔋 Battery Bank Setup

192V System

  • Requires 16 × 12V batteries in series
    (12V × 16 = 192V)

  • For increased backup time, use multiple series strings in parallel.

Battery Setup Resulting Capacity
16 × 12V 200Ah 192V, 200Ah (38.4 kWh)
32 × 12V 200Ah (2S) 192V, 400Ah (76.8 kWh)

🔋 Use deep-cycle tubular, AGM, or LiFePO₄ batteries for longer life and safety.


🔆 Solar Panel Recommendations

Solar Array Size Recommended: 10kW – 20kW
Example Setup 36 × 550W panels = 19.8kW
Configuration Multiple strings in series-parallel
MPPT Controller Likely supports high PV input (up to 250–450V)

Use MPPT input voltage and current limits from the inverter's manual to match your PV array.


Hybrid Features

  • Multi-input power sources:

    • Solar panels

    • Battery bank

    • Grid (NEPA)

    • Generator (auto start support may be included)

  • Built-in MPPT controller (more efficient than PWM)

  • LCD/touchscreen monitoring or Wi-Fi app (varies by model)

  • Protection: Overload, short circuit, reverse polarity, deep discharge

  • Priority Settings:

    • Solar → Battery → Grid

    • Or Battery → Grid → Solar, etc.

  • Automatic changeover and load management


⚠️ Why 192V Is Better for High Loads:

  • Lower current for the same power = less heat, smaller cables, and greater efficiency

  • Example:
    24,000W ÷ 192V = ~125 Amps
    (Compared to 500A at 48V for same power!)
