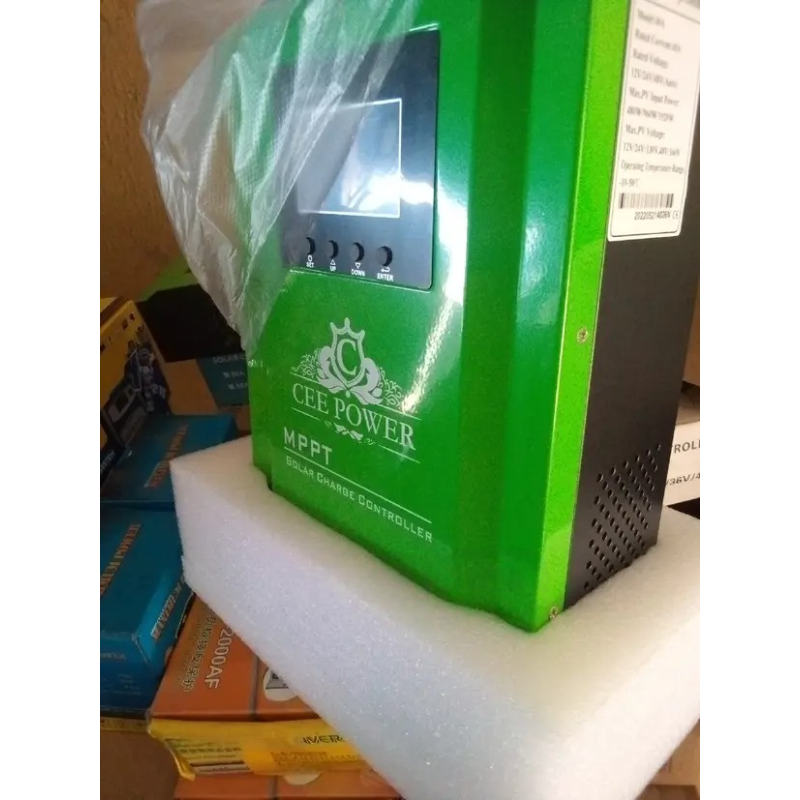

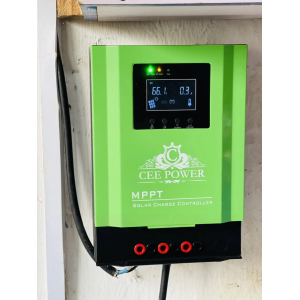

120ah 12/48v MPPT Cee Power Charge Controllers

Product Description:

The CEE POWER 120Ah 12V/48V MPPT Controller is an advanced solar charge controller designed for both 12V and 48V battery systems, capable of handling up to 120Ah of current. This controller integrates Maximum Power Point Tracking (MPPT) technology to maximize solar energy harvesting, ensuring your system operates at peak efficiency. Perfect for medium to large-scale solar applications, it features built-in protection and real-time monitoring, offering unmatched performance and reliability for residential and commercial solar power systems.

Key Features:

Maximum Current Output: Handles up to 120Ah for high-capacity systems.

Battery Voltage Support: Compatible with both 12V and 48V battery configurations.

MPPT Technology: Maximizes solar power conversion for efficient energy harvesting.

High Charging Efficiency: Achieves up to 98% efficiency in energy conversion.

Real-Time Monitoring: LCD display for easy tracking of system performance and battery status.

Temperature Compensation: Automatically adjusts charging parameters based on ambient temperature.

Multiple Protection Features: Overcurrent, overvoltage, reverse polarity, and short-circuit protection.

Wide Input Voltage Range: Supports solar panel input voltages from 18V to 100V.

Battery Compatibility: Compatible with various battery types such as AGM, Gel, Lithium, and Flooded.

Heat Dissipation System: Includes heat sinks and fan to ensure reliable operation under all conditions.

Remote Monitoring: RS485, Ethernet, and mobile app support for easy remote access and control.

User-Friendly Interface: Simple to set up and operate, with an intuitive control panel.

Durable Design: Engineered for long-lasting durability and performance in harsh environments.

Specifications:

Model: CEE POWER 120Ah MPPT Controller.

Battery Voltage Range: 12V to 48V.

Maximum Charging Current: 120Ah.

MPPT Efficiency: >99% efficiency in tracking and conversion.

Input Voltage Range (Solar Panels): 18V to 100V.

Peak Conversion Efficiency: 98%.

Display Type: LCD screen with system status and data monitoring.

Operating Temperature Range: -20°C to 50°C.

Dimensions: 350mm x 280mm x 130mm.

Weight: 7.2 kg.

Charging Stages: 3-stage charging (Bulk, Absorption, Float).

Communication Ports: RS485, Ethernet, and Wi-Fi for remote monitoring and control.

Protections: Overcurrent, overvoltage, reverse polarity, and temperature protection.

Compliance Standards: CE, RoHS, UL certified.

Warranty: 2-year limited warranty for product reliability.
