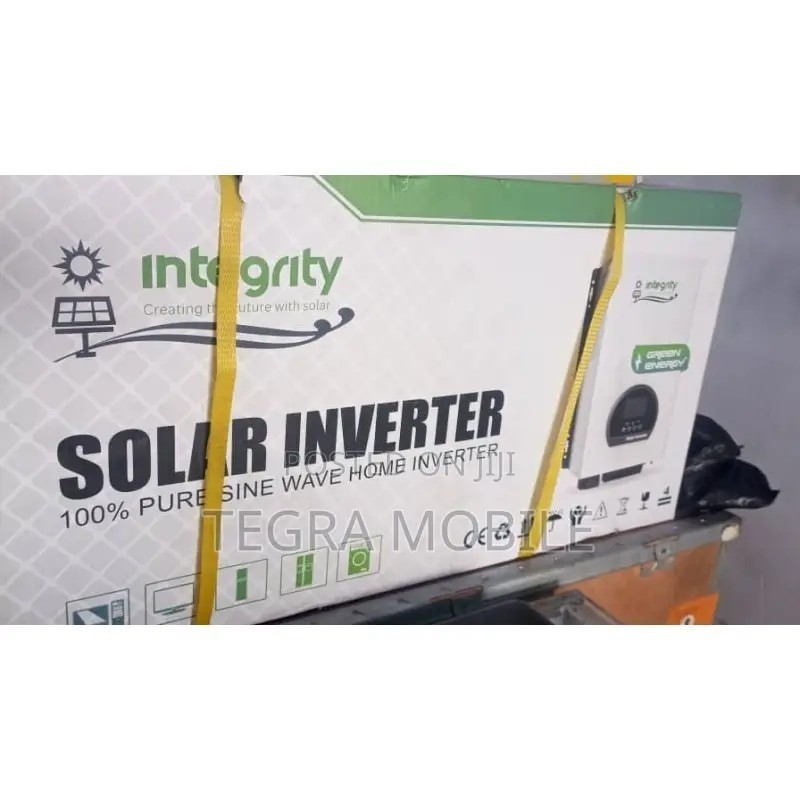

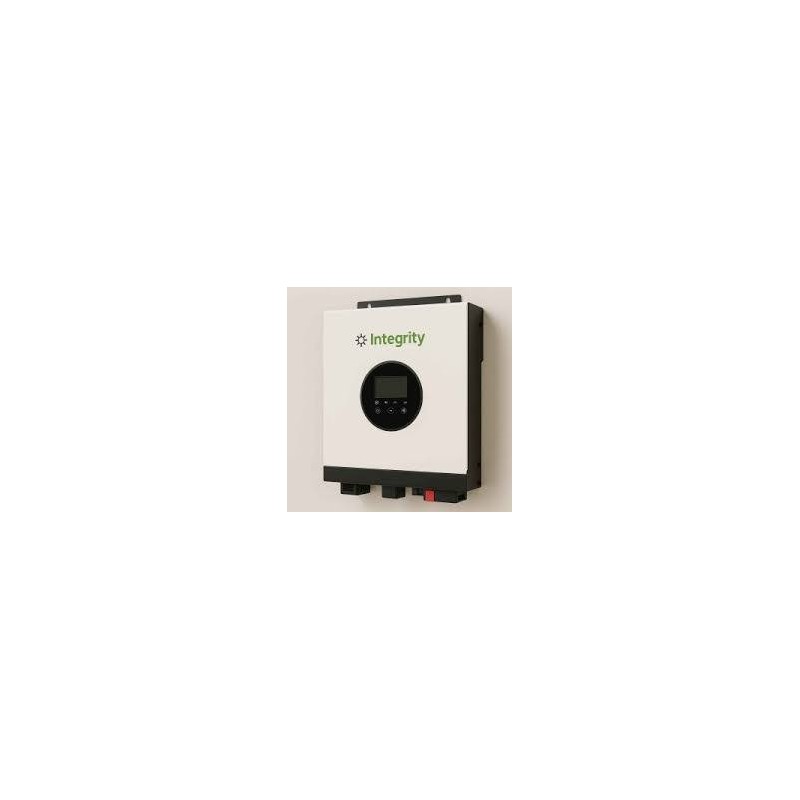

5KVA 48V INTEGRITY TRANSFORMER HYBRID INVERTER

A 5kVA 48V Integrity Transformer Hybrid Inverter is a type of power inverter used in solar power systems and backup power setups. Here's a breakdown of what each part of that name typically means:

⚙️ Key Specifications Explained:

✅ 5kVA (Kilovolt-Amperes):

• Power Rating: 5kVA = 5000VA.

• For appliances with a power factor (PF) of 0.8 (common in homes), real power = 5000 × 0.8 = 4000 watts (4kW).

• Can handle the power needs of a small home or office.

✅ 48V:

• Battery Voltage: The inverter uses a 48-volt battery bank, typically made up of four 12V batteries in series.

• This is more efficient than 12V or 24V systems for higher power output.

✅ Integrity Transformer:

• Likely indicates the inverter includes a transformer-based design, which:

  • Is more robust and better for inductive loads (like pumps, fridges, ACs).

  • Provides galvanic isolation for safer operation.

  • May be heavier and slightly less efficient than transformerless types.

✅ Hybrid Inverter:

• Supports multiple power sources:

  • Solar panels

  • Batteries

  • Grid power (mains)

• Manages charging and switching intelligently.

• Can feed excess solar power back to the grid (if grid-tied).

🪫 Typical Features:

• MPPT solar charge controller (often 60A–80A).

• Pure sine wave output (safe for sensitive electronics).

• LCD/LED display for system monitoring.

• Overload, short circuit, and over-temperature protection.

• Option for off-grid, grid-tied, or hybrid operation.

✅ Common Applications:

• Residential solar backup

• Small offices

• Off-grid cabins

• Hybrid solar systems
