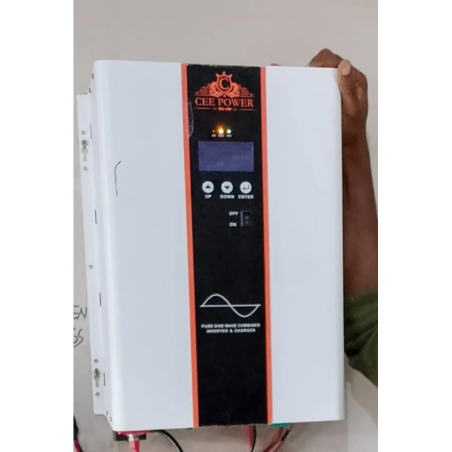

5kVA 48V Hybrid Cee Power Solar Inverter is a strong and efficient solar inverter setup ideal for medium to large homes or small commercial setups. Using a 48V system reduces current draw and increases system efficiency, making it preferable over 24V for higher power loads.
⚙️ Key Specifications
⚡ What It Can Power (~4000W)
-
All LED lighting in a house
-
6–10 ceiling or standing fans
-
2 medium refrigerators or 1 deep freezer
-
TVs, laptops, routers, phones
-
Washing machine or water pump
-
Small air conditioner (1.0HP or 1.5HP, used moderately)
✅ Supports running multiple appliances, as long as the combined wattage stays below 4000W.
🔋 Battery Bank Setup
-
Battery types: Tubular, GEL, AGM, or LiFePO₄
-
For longer backup: Add parallel strings (e.g., 2S2P = 48V, 400Ah)
🔋 At full load (4000W), current = 4000 ÷ 48 = ~83A — which is manageable and more efficient than 24V (167A for same load).
🔆 Solar Panel Recommendations
-
MPPT solar charge controller (preferred): Higher efficiency, supports wider PV voltage range (e.g., 60–145V)
-
Wiring: Configure panels in series-parallel to match inverter's PV input specs
-
Example: 3S2P (3 in series × 2 parallel) = 6 panels total
✅ Hybrid Features (Common with Cee Power)
-
Auto switch between solar → battery → grid
-
MPPT controller: Maximizes solar energy harvest
-
LCD display: Shows system status (battery %, load, solar input)
-
Built-in protections: Overload, short-circuit, low battery, overcharge
-
Supports generator or NEPA as backup input
-
Charging modes: Solar priority, utility priority, or battery priority
