2KVA – 24V Inverter-HT

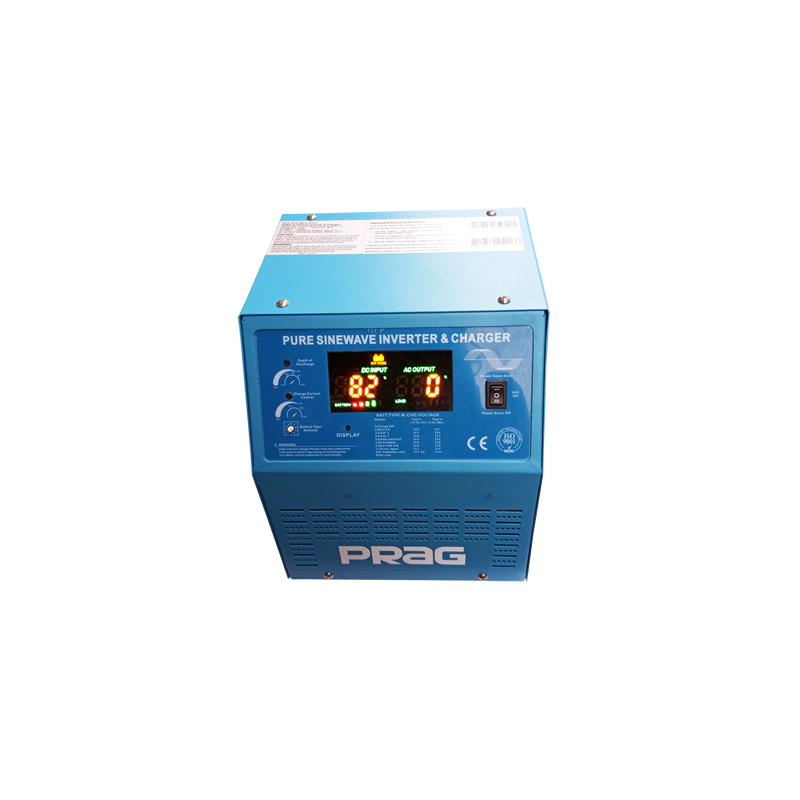

PRAG 2KVA-24V HT-Series (Pure Sine Wave) Inverter / Charger is a combination of an inverter, battery charger and AC auto-transfer switch that forms one complete system with a peak conversion efficiency rating of 88%. Packed with powerful features, it is simply one of the most reliable and robust inverter/chargers in the market today.

PRAG 2KVA-24V HT-Series features power factor correction, sophisticated multi-stage charging and pure sine wave output with superior surge capability to meet demanding power needs of inductive loads without endangering the equipment. This series is equipped with a powerful charger of up to110Amps (depending on model). The overload capacity is 300% of continuous output for up to 20 seconds to reliably support sudden increase in loads without damaging the system within the time frame.

PRAG 2KVA – 24V Inverter Features

Powerful Pure Sine Wave (PSW) Inverter/Charger

13 Vdc inverter Battery Recover Point (BRP) – Dedicated for Renewable Energy Systems

High efficiency design and Power Saving Mode to conserve energy

8 Pre-set battery type selectors with de-sulphation for totally flat inverter batteries

4 Step Intelligent Battery Charging system, and Power Factor Correction (PFC)

8 Ms typical transfer time between utility and battery bank. This guarantees power continuity and consistency

15 Seconds delay before transfer when AC Resumes, and protection for load when used with generator

Battery DOD (Depth of Discharge) setting from 50%

Easy and straightforward installation

Designed to operate under harsh environment

DC Start and Automatic Self Diagnostic (ASD) function

Compatible with Linear and Non-Linear loads

Low DC Voltage home and office appliances support

Up to 120Amp charging current selectable from 0%-100%

Battery priority mode for preferred UPS configuration
