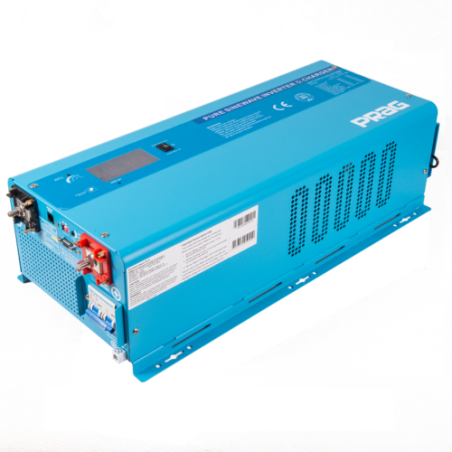

PRAG 7.5KVA-48V Pure Sine Wave Inverter-Wall Mount

PRAG 7.5KVA-48V H-Series (Pure Sine Wave) Inverter / Charger is a combination of an inverter, battery charger and AC auto-transfer switch that forms one complete system with a peak conversion efficiency rating of 88%. Packed with powerful features, it is simply one of the most reliable and robust inverter/chargers in the market today.

PRAG 7.5KVA-48V H-Series features power factor correction, sophisticated multi-stage charging and pure sine wave output with superior surge capability to meet demanding power needs of inductive loads without endangering the equipment. This series is equipped with a powerful charger of up to110Amps (depending on model). The overload capacity is 300% of continuous output for up to 20 seconds to reliably support sudden increase in loads without damaging the system within the time frame.

PRAG 7.5KVA – 48V Inverter Features

Powerful Pure Sine Wave (PSW) Inverter/Charger

13 Vdc inverter Battery Recover Point (BRP) – Dedicated for Renewable Energy Systems

High efficiency design and Power Saving Mode to conserve energy

8 Pre-set battery type selectors with de-sulphation for totally flat inverter batteries

4 Step Intelligent Battery Charging system, and Power Factor Correction (PFC)

8 Ms typical transfer time between utility and battery bank. This guarantees power continuity and consistency

15 Seconds delay before transfer when AC Resumes, and protection for load when used with generator
