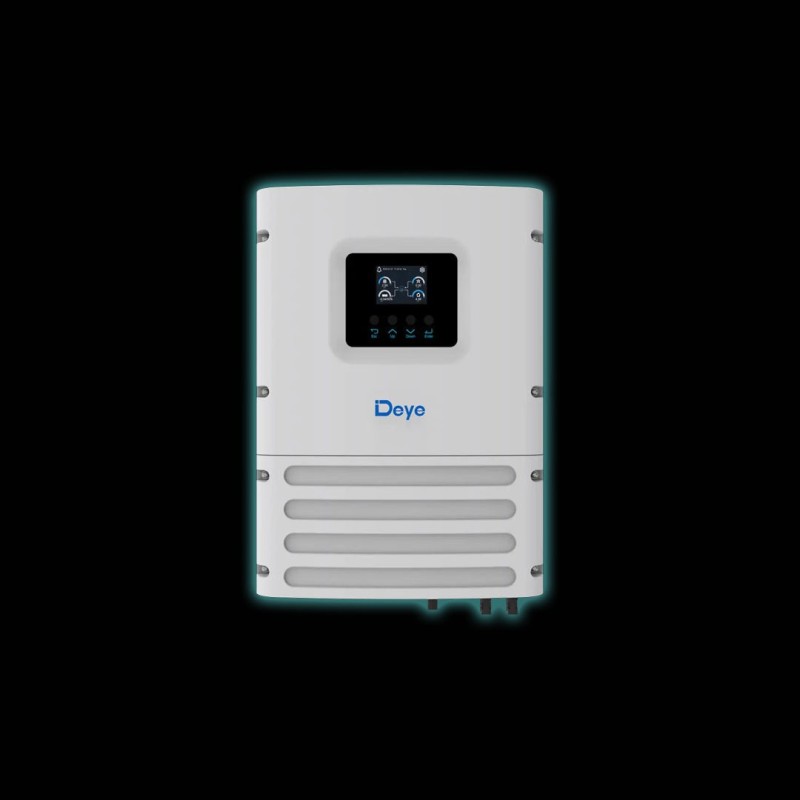

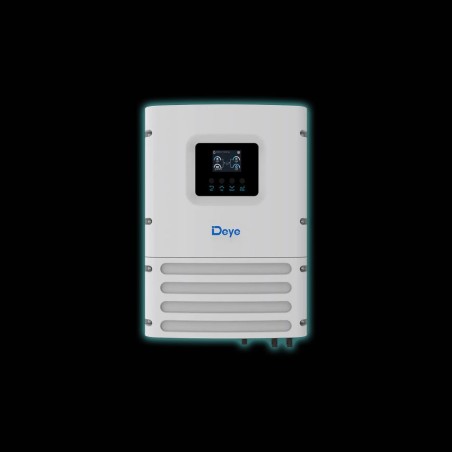

6KW SINGLE PHASE OFF GRID DEYE INVERTER

"Colorful touch LCD, IP65 protection degree

AC couple to retrofit existing solar system

Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Max. charging/discharging current of 140A

6 time periods for battery charging/discharging

Support storing energy from diesel generator

Model SUN-3K-SG04LP1-24-EU SUN-3K-SG04LP1-EU SUN-3.6K-SG04LP1-EU SUN-5K-SG04LP1-EU SUN-6K-SG04LP1-EU

Battery Input Data

Battery Type Lead-acid or Lithium-ion

Battery Voltage Range (V) 20-30 40-60 40-60 40-60 40-60

Max. Charging Current (A) 140 70 90 120 135

Max. Discharging Current (A) 140 70 90 120 135

Charging Strategy for Li-ion Battery Self-adaptation to BMS

Number of Battery Input 1

PV String Input Data

Max. PV Access Power (W) 6000 6000 7200 10000 12000

Max PV Input Power (W) 4800 4800 5760 8000 9600

Max PV Input Voltage (V) 500

Start-up Voltage (V) 125

MPPT Voltage Range (V) 150-425

Rated PV Input Voltage (V) 370

Max Operating PV Input Current (A) 13 13+13

Max Input Short-Circuit Current (A) 17 17+17

No.of MPP Trackers/No.of Strings MPP Tracker 1/1 2/1+1

AC Input/Output Data

Rated AC Input/Output Active Power (W) 3000 3600 5000 6000

Max AC Input/Output Apparent Power (VA) 3300 3960 5500 6600

Rated AC Input/Output Current (A) 13.6/13 16.4/15.7 22.7/21.7 27.3/26.1

Max AC Input/Output Current (A) 15/14.3 18/17.2* 25/23.9 30/28.7

Max Continuous AC Passthrough (grid to load) (A) 35 40

Peak Power off-grid (W) 2 times of rated power,10s

Power Factor Adjustment Range 0.8 leading to 0.8 lagging

Rated Input/Output Voltage/Range (V) 220/230, 0.85Un-1.1Un

Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65

Grid Connection Form L+N+PE

Total Current Harmonic Distortion THDi <3% (of nominal power)

DC Injection Current <0.5% In

Equipment Protection

Integrated

DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,

AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,

Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch,

Insulation Impedance Detection, Residual Current Detection"
