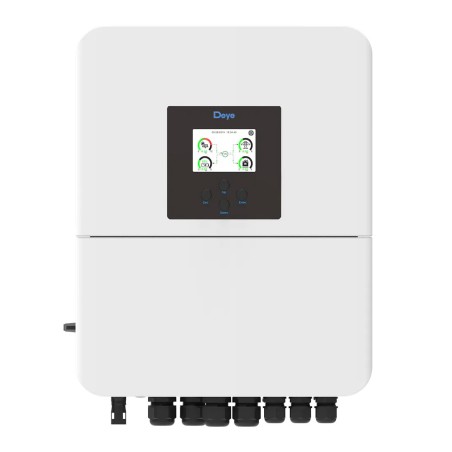

"DEYE single Phase 16 KW Low Voltage Hybrid Inverter (model SUN-16K-SG01LP1-EU-AM3) is a hybrid inverter designed for single phase systems and maintenance of low-voltage batteries (48V). Designed to efficiently manage energy from solar panels, batteries, and grid power, the inverter offers a robust solution for storing and managing electricity. It is compatible with both lithium-ion and lead-acid batteries and supports parallel operation of up to 10 devices. It integrates easily into existing solar systems, thanks to the possibility of AC connection. Supports Wi-Fi monitoring and management.
Characteristics:
Maximum PV Input Power: 32,000 W
Maximum PV input current: 300 A
Solar System Input Voltage: 160-650 VDC
Inverter Power Rating: 16,000 W
Maximum output power: 17,600 W
Maximum charge/discharge current: 350 A
Number of MPPT trackers: 2
Battery type: Lithium-ion or lead-acid, with a voltage of 48V
Support parallel operation: Up to 10 inverters
Efficiency: Maximum efficiency 97.6%, MPPT efficiency >99%
Degree of protection: IP65 for outdoor installation
Cooling: Intelligent Air System
Diesel generator charging: Yes
Communication and monitoring: Wi-Fi, GPRS, Bluetooth, RS485, CAN"
