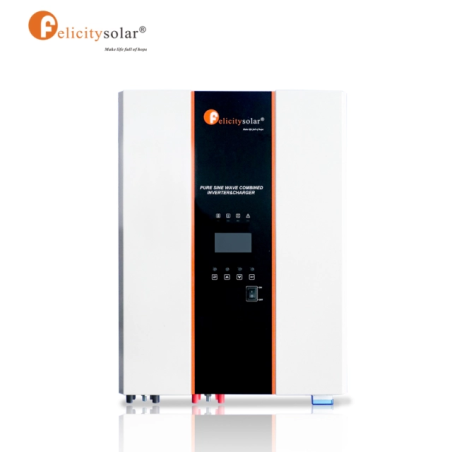

7.5Kva 48V IVPM Felicity Solar Inverter

Felicity Solar IVPM Low Frequency Solar Inverter With 120A MPPT Solar Inverter , Long Lifesan, Digital Screen and Stronger Protection. Solar inverter, or converter, or PV inverter converts the variable DC output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be off-grid electrical network. It is a critical balance of system–component in a solar power system, allowing the use of ordinary AC-powered equipment

Nominal Input Voltage

220V

Max. Charging Current

60A

AC Widely Input Voltage

90-280V

Model IVPM2512 IVPM2524 IVPM3524 IVPM3548

IVPM5024 IVPM5048 IVPM7548 IVPM10048

Rated Output Power(VA) 2500VA 2500VA 3500VA 3500VA

5000VA 5000VA 7500VA 10000VA

Rated Output Power(W) 2000W 2000W 2800W 2800W

4000W 4000W 6000W 8000W

Nominal DC Input Voltage 12V 24V 48V 24V 48V

Input Voltage Waveform Sinusoidal(Utility or generator)

Nominal Input Voltage 220Vac

Low Line Disconnect 170±7Vac(UPS) 90±7Vac(APL)

Low Line Re-connect

AC Input Range 180±7Vac(UPS) 100±7Vac(APL)

High Line Disconnect 280±7Vac

High Line Re-connect 270±7Vac

Max AC Input Voltage 280Vrms

Nominal Input Frequency 50Hz/60Hz

Low Line

Frequency Disconnect 40±1Hz

Low Line

Frequency Re-connect 42±1Hz

High Line

Frequency Disconnect 65±1Hz

High Line

Frequency Re-connect 63±1Hz

Output Voltage Waveform As same as input waveform

Over-Load

Protection(SMPS load) AC 30A Air switch protection

Output Short

Circuit Protection AC 30A Air switch protection

Efficiency(Line mode) ≥95% (Rated R load, and battery is fully charged)

Transfer Time (AC to DC) 15ms (typical)

Transfer Time(DC toAC) 15ms (typical)

Pass Through

Without Battery No

Max Bypass

Overload Current AC 30A AC 63A

Utility Charge Mode Specifications

Nominal Input Voltage 220Vac

Input Voltage Range 90~280Vac

Nominal Output Voltage Dependent on battery type

Max Charge Current 40A 50A 60A 80A

Charge Current Regulation 0A~40A 0A~50A 0A~60A 0A~80A

Battery Initial Voltage Circuit breaker

Charger Short Circuit AC30A AC 63A

Breaker Size Dependent on battery type or Self-defined

Over Charge Protection Yes
