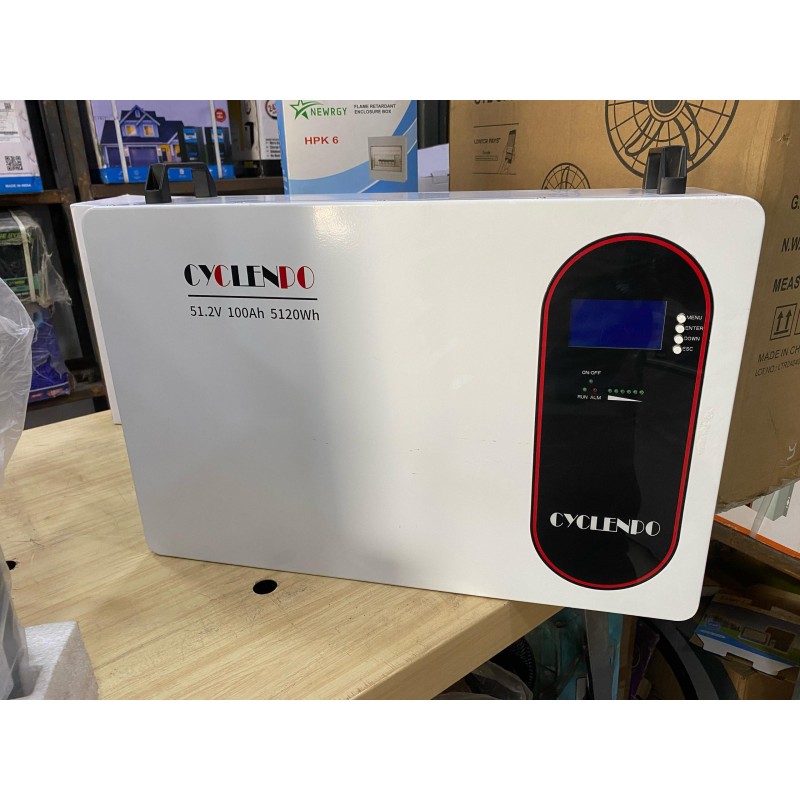

51.2v 100AH 5120Wh lithium Cyclenpo battery (LiFePO4)

Cyclenpo 51.2v 100ah lifepo4 battery

Specifications of powerwall battery 51.2v 100ah

Item

General Parameter

Remark

Combination method

16S1P

Rated Capacity

100Ah

Standard discharge after Standard charge

Factory Voltage

51V-53V(40-60%)

 Mean Operation Voltage

Discharge Cut-off Voltage

40-44V

Charging Voltage

56-58V

Internal Impedance

≤60mΩ

Internal resistance measured at AC 1KHZ after 50% charge

Standard charge current

50A

 Charge time : Approx 6 h

Limiting charge current

20A

Standard discharge current

20A

Max Continuous Charge Current

100A

Max Continuous Discharge Current

100A

100A when 0ºC＞T≥-10ºC

50A when -10ºC＞T≥-20ºC

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Bare Cell

Discharge: -20~55℃

Storage Temperature Range

-10~35℃

Less than 12 months

-10~45℃

Less than 3 months

-20~65℃

Less than 7 day

Dimensions

520*752*110 mm

Weight

50kg
