30A Must MPPT Solar Charge Controller
  • 30A Must MPPT Solar Charge Controller
  • 30A Must MPPT Solar Charge Controller

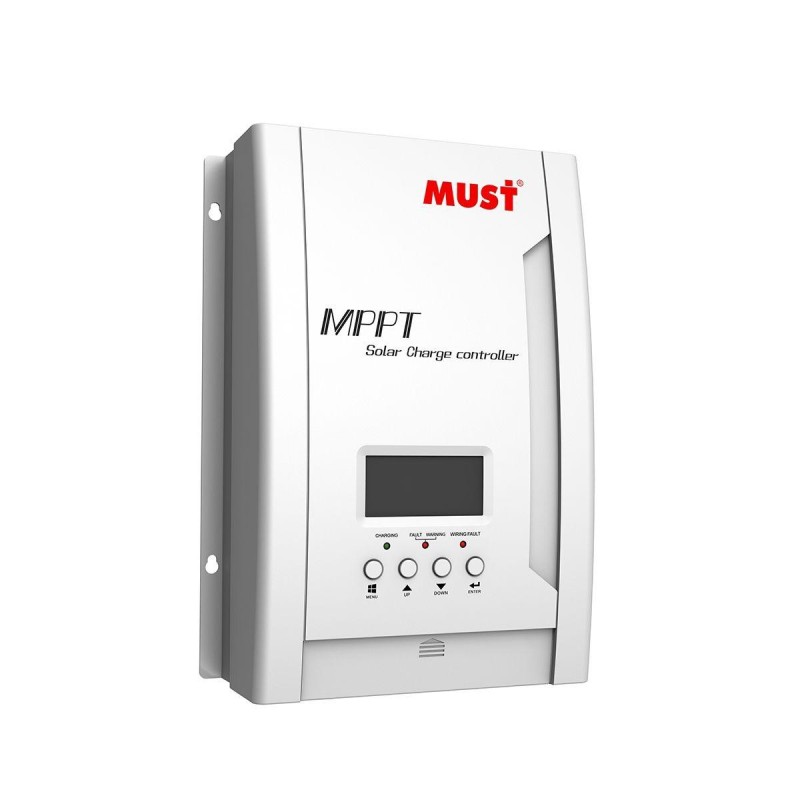

30A Must MPPT Solar Charge Controller

₦84,000.00
Tax excluded
Quantity

Ask about the product on WhatsApp
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
MODEL PC18-3015A PC18-4015A
Nominal Battery System Voltage 12V / 24V (Auto detection)
CONTROLLER INPUT
Battery Voltage 12V/ 24V
Open circuit voltage 145V
PV Array MPPT Voltage Range 60-130VDC
Maximum Input Power 12V 432W 576W
24V 864W 1152W
BATTERY
Charging Set Points Flooded Battery Absorption Stage 14.2V/28.4V
Float Stage 13.7V/27.4V
AGM/GEL/LEAD
(Default)		 Absorption Stage 14.4V/28.8V
Float Stage 13.7V/27.4V
Over-charging Voltage 15.5V / 30.0V
Over-charging Comeback Voltage 14.5V / 29.5V
Battery Defect Voltage 10.0V / 17.0V
Temperature Compensation Coefficient -5mv / °C /cell (25°C vef)
Peak Conversion Efficiency 98% (MPPT Efficiency 99%)
Maximum Battery Current 30A 40A
Max Charging Current 30amps continuous @ 40°C ambient 40amps continuous @ 40°C ambient
GENERAL SPECIFICATION
Radiating Mode Automatic cooling
Protections Solar high voltage disconnect/ Solar high voltage reconnect/ Battery high voltage disconnect Battery high voltage reconnect/ High temperature disconnect/ High temperature reconnect
MECHANICAL SPECIFICATIONS
Mounting Wall mount
Machine Dimension (W*H*D)(mm) 187*255*72mm
Package Dimension (W*H*D)(mm) /
