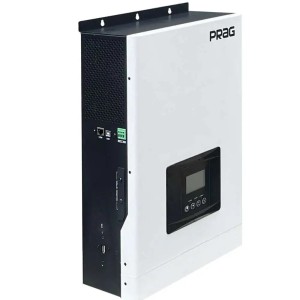

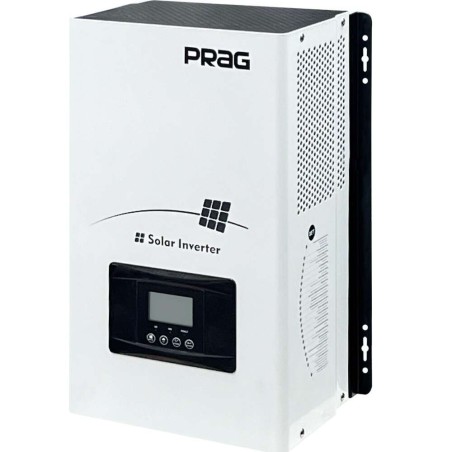

The 3kw/24V Hybrid Inverter combines efficient performance and versatility, making it an ideal solution for off-grid solar energy systems. Designed to handle demanding energy needs, it ensures stable, reliable power for homes and businesses.
Key Features
Inverter Performance:
Rated Power: 3000VA/3000W with a Surge Power of 6000W.
Waveform: Pure sine wave for smooth and stable energy delivery.
Efficiency: High performance with a peak inverter efficiency of 90–93%.
Fast Response: Transfer time as low as 10ms (UPS/VDE4105) or 20ms (APL).
AC Input:
Voltage Range: 230VAC ±5% with selectable ranges for UPS, APL, or VDE4105 modes.
Frequency: Auto-sensing for 50Hz or 60Hz compatibility.
Battery Management:
Voltage: 24VDC system with floating charge voltage at 27.4VDC.
Overcharge Protection: Safeguarded at 30VDC for extended battery life.
Solar & AC Charging:
Maximum PV Array Power: Supports up to 3000W for high solar input capacity.
MPPT Voltage Range: 60–360VDC for optimized solar energy harvesting.
Charge Current: Maximum of 100A for both solar and AC charging.
Compact and Durable Design:
Dimensions: Space-saving 290x367x111mm with a weight of 6.6kg (net).
Temperature Range: Operates between 0°C to 50°C and stores safely at -15°C to 60°C.
