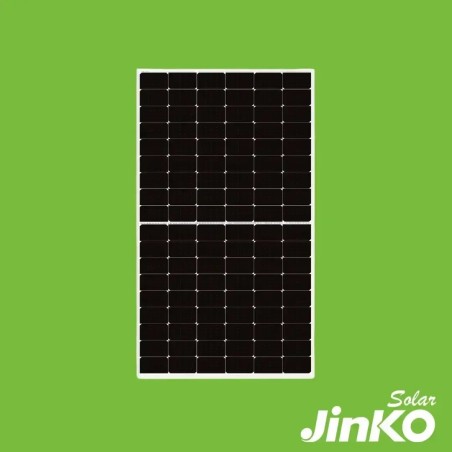

585W Jinko Mono Solar Panel

Jinko 585W Monofacial Solar Panel, model JKM585N-72HL4-V, is part of Jinko Solar's Tiger Neo series, featuring advanced N-Type TOPCon technology. This panel is designed for high-efficiency performance, making it suitable for large-scale residential, commercial, and industrial solar installations

⚙️ Key Specifications

• Model: JKM585N-72HL4-V

• Cell Type: N-Type Monocrystalline with TOPCon technology

• Power Output (Pmax): 585 Watts

• Module Efficiency: 22.65%

• Voltage at Max Power (Vmp): 43.53 V

• Current at Max Power (Imp): 13.44 A

• Open-Circuit Voltage (Voc): 52.47 V

• Short-Circuit Current (Isc): 14.07 A

• Power Tolerance: 0 ~ +3%

• Temperature Coefficient (Pmax): -0.29%/°C

• Operating Temperature Range: -40°C to +85°C

• Maximum System Voltage: 1000/1500 VDC (IEC)

• Maximum Series Fuse Rating: 25 A​greensun.roSunpro Energy+3Vico Export+3SolarApp+3Nastech Solar+3ENF Ltd.+3Sunpro Energy+3MY Solar Technology+10V-TAC+10Sunpro Energy+10starzelectric.com+5Sunpro Energy+5jinkosolarcdn.shwebspace.com+5MY Solar Technology+3jinkosolarcdn.shwebspace.com+3Nastech Solar+3Nastech Solar+2MY Solar Technology+2jinkosolarcdn.shwebspace.com+2

🛠️ Mechanical Characteristics

• Dimensions: 2278 × 1134 × 30 mm

• Weight: 27 kg

• Number of Cells: 144 (6×24)

• Front Glass: 3.2 mm tempered glass with anti-reflective coating

• Frame: Anodized aluminium alloy

• Junction Box: IP68 rated

• Connector Type: MC4 compatible​sundtapv.com+4Sunpro Energy+4fronus.com+4Nastech Solar+2fronus.com+2sundtapv.com+2fronus.com+3sundtapv.com+3jinkosolarcdn.shwebspace.com+3

✅ Key Features

• N-Type TOPCon Technology: Offers higher efficiency and better performance in low-light conditions.

• Multi Busbar (MBB) Design: Enhances light absorption and reduces resistance loss.

• Durability: Certified to withstand high wind (2400 Pa) and snow loads (5400 Pa).

• PID Resistance: Ensures long-term performance and reliability
