660w Maximum Solar Panel`
  • 660w Maximum Solar Panel`

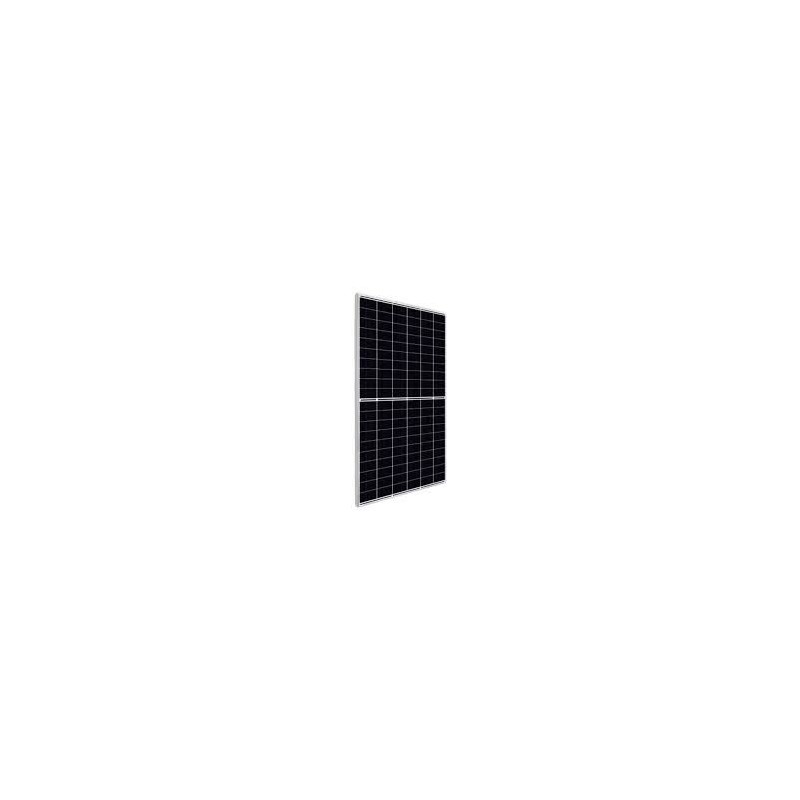

660w Maximum Solar Panel

₦137,500.00
Tax excluded
Quantity

Ask about the product on WhatsApp
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

660W solar panel represents one of the highest-capacity modules available for commercial, industrial, and large-scale residential solar installations. These panels are designed to maximize energy output while minimizing installation space, making them ideal for projects where efficiency and space utilization are paramount.​

⚙️ Key Specifications of 660W Solar Panels

Attribute Typical Value
Rated Power (Pmax) 660 Watts
Module Efficiency 20.6% – 21.25%
Voltage at Max Power (Vmp) ~37.6 V
Current at Max Power (Imp) ~17.57 A
Open-Circuit Voltage (Voc) ~45.94 V
Short-Circuit Current (Isc) ~18.64 A
Cell Type Monocrystalline PERC, 210mm half-cut cells
Number of Cells 132 (6×22 configuration)
Dimensions (L×W×H) 2384 mm × 1303 mm × 35 mm
Weight Approximately 35.8 kg
Temperature Coefficient (Pmax) -0.351%/°C
Operating Temperature Range -40°C to +85°C
Maximum System Voltage 1000V / 1500V DC
Junction Box Protection IP68
Connector Type QC 4.10 or equivalent

Note: Specifications may vary slightly between manufacturers. Always refer to the specific datasheet of the panel you intend to use.

✅ Key Features

  • High Efficiency: With efficiencies exceeding 21%, these panels ensure maximum power generation per unit area.

  • Advanced Cell Technology: Utilization of large 210mm monocrystalline PERC cells enhances performance, especially in low-light conditions.

  • Durability: Designed to withstand harsh environmental conditions, including high wind and snow loads.

  • Reduced Balance of System (BOS) Costs: Higher power output per panel reduces the number of panels needed, leading to savings in mounting structures, wiring, and labor.​Solar Traders

🔋 System Compatibility

System Voltage Recommended Panel Configuration
24V Not recommended; panel voltage too high
48V 1 panel with MPPT charge controller
96V 2 panels in series
192V 4 panels in series

Ensure that the charge controller or inverter used is compatible with the voltage and current specifications of the panel configuration.
