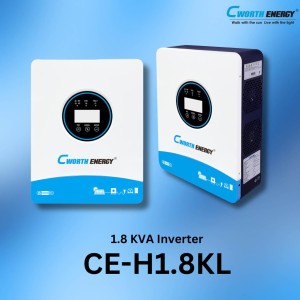

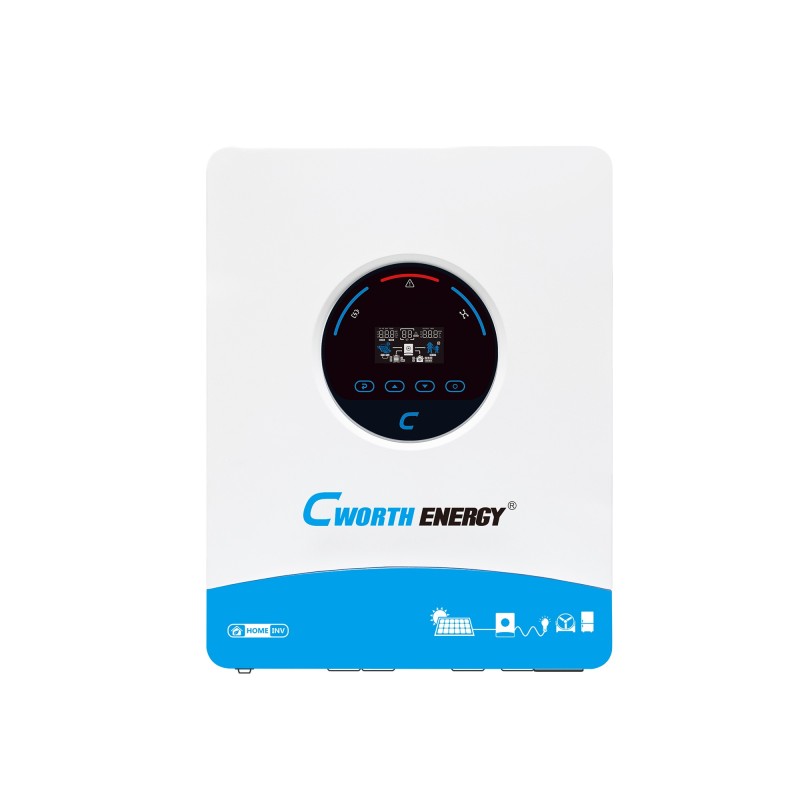

Inverter Model CE-H1.8K CE-H4K CE-H6K
Rated Output Power(W) 1500W 4000W 6000W
Nominal DC Input Voltage 12V 24V 48V
Nominal Output Voltage 230Vac+5
AC Input Normal Voltage 90-280V
Nominal Output Frequency(Hz) 50±0.2Hz/60±0.2Hz(Adjustable)
Peak Efficiency 95% 93% 93%
DC Max Charging/Discharge Current(BAT) 105A/150A 120A/160A 120A/125A
Max. PV Open Circuit Voltage 130V 500V 500V
MPPT Operating Voltage Range 15~120V 85~450V 85~450V
Max. Input Current(PV) 20A 15A 27A
Transfer Time (Single unit) 10ms typical (UPS); 20ms typical (Appliances)
